B-Safe X Sensor
Much more than you see.

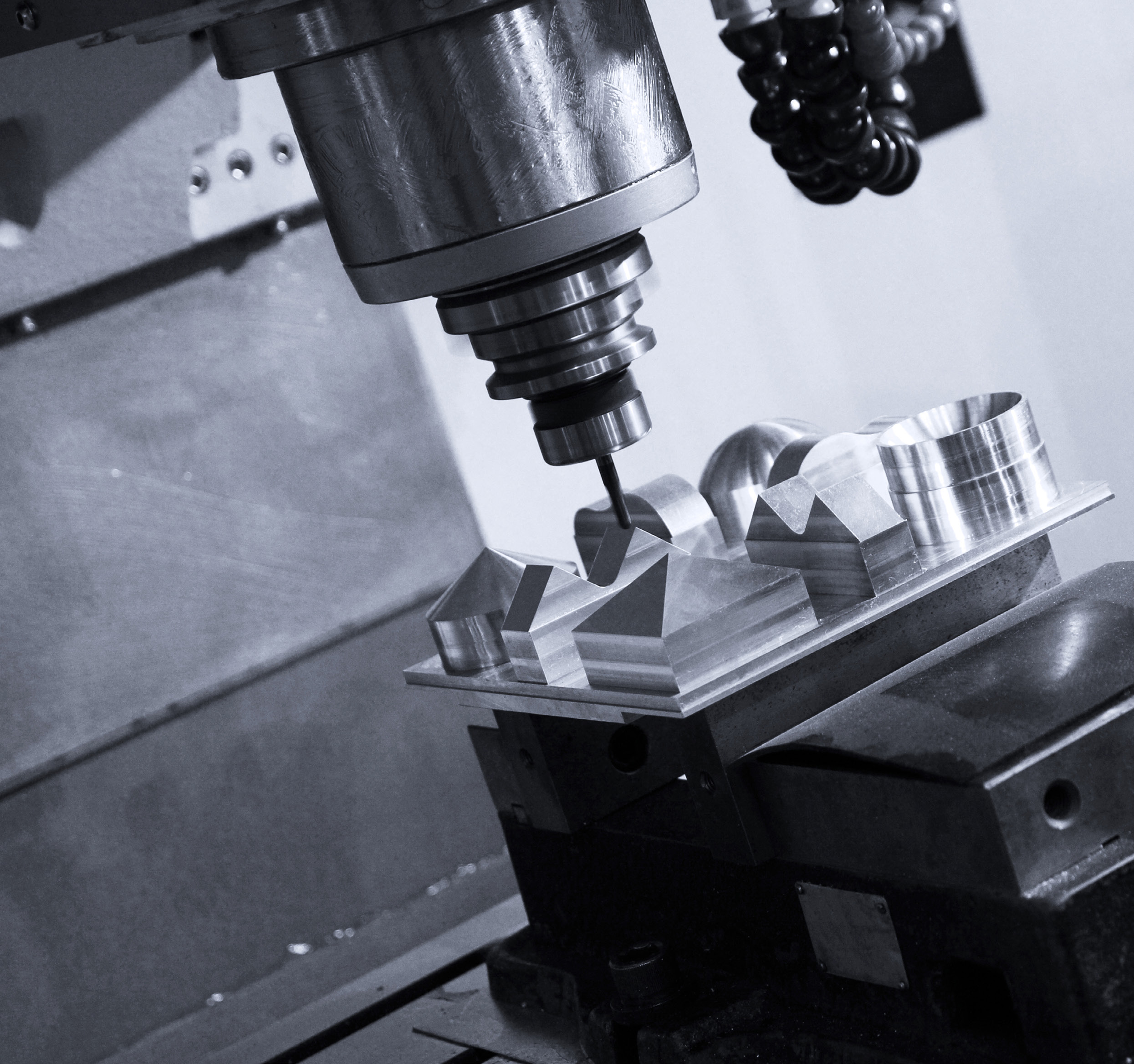

A configurable system for continuous monitoring and protection of spindles and machine tools. The miniaturised sensor installs directly on the spindle for real-time monitoring and predictive downtime reduction.
Your safety solution
Crash protection
Immediate machine stop on collision within 1 ms.
Continuous monitoring
Data recording even when the machine is turned off.
Black box
Embedded data logger for events, waveforms and trends.
Industry 4.0 upgrade
Information sharing over Modbus TCP or RTU on RS485.
Hybrid MEMS 3D + piezoelectric technology delivers complete signal analysis on a wide band. An integrated microprocessor with local memory detects and records collisions, unbalances, overloads, working-cycle anomalies, tool wear and bearing diagnostics.
Software & connectivity
Interact locally, supervise from anywhere.
Always-connected HMI
The B-Safe HMI interacts with multiple sensors simultaneously and is available in different languages and layouts, running on Windows PCs and control panels.
Fingerprint
Condition monitoring based on a reference mask recorded in a healthy state; total RMS gives a fast comparison and FFT enables deeper investigation.
Events
Review spindle history through an intuitive infographic — alarms, warnings, check-up notes and power status. Collision events expose 4 s before and 1 s after the impact.
Statistical data & trends
Coefficients and thresholds adapt to a wide variety of applications. Includes Spindle Check-Up for real health assessment.
B-Safe Cloud
Remotely supervise all sensors, personalise SMS / email / push alerts and access data from the dedicated web portal or iOS / Android app.
Configure your system
Pick the options that fit your process.
- L1Event Logbook
- L2Triaxial Real-Time Data
- L3High Frequency Monoaxial Data
- L4FFT Analysis
- L5Collision Waveform Recorder
- L6Historical Trends
- L7Spindle Check-Up
- L8Service Notes
- L9Triaxial Real-Time Data Recorder
- L10Fingerprint
Predictive maintenance
Capabilities out of the box.
- ›Collision alarm within 1 ms
- ›Waveform recording of the last 10 collision events
- ›Overloading alarm
- ›Statistical data recording
- ›Overheating alarm
- ›Historical trend recording
- ›Programmable thresholds
- ›Real-time data for process monitoring
- ›Sensor with integrated memory
- ›Digital data for post-processing
- ›Events data logging
- ›5-day back-up battery
- ›Fingerprint
- ›Axis alignment of sensor to machine
Technical specs
Miniaturised, rugged, integrated.
- Connector version
- M12 × 1.0 — L 41 mm
- Integrated cable (M12)
- M12 × 1.0 — L 32 mm
- Integrated cable (M16)
- M16 × 1.5 — L 22 mm
- Cable length
- 5 m (extensions available)
- Triaxial sensor
- MEMS ±16 g, 1,000 Hz
- Monoaxial sensor
- Piezoelectric ±16 g, 10 kHz
- Working temperature
- −40 to 85 °C (−40 to 185 °F)
- Shock resistance
- 10,000 g
- Connectivity
- Modbus TCP or RTU on RS485
Ready to protect your spindles?
Talk through B-Safe X selection, options and rollout for your plant.
